Process Activities / Yammer tab
Parent topic: Yammer tab

Post Message activity

An activity that posts a private message to a specified user or a group.



Configure the Post Message activity

To configure the Post Message activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library open the Yammer tab.
      2. On the Yammer tab, drag the Post Message activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Post Message .
  3. Complete the fields on these screens.
    1. Post Message to Yammer Configuration > Send Private Message tab.
    2. Post Message to Yammer Configuration > Post in a Group tab.

    For more information, refer to Send a Message in Yammer.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

Post Message to Yammer Configuration > Send Private Message

Configures a message to send to a specified user.



Fields

Field Name Definition

Yammer
Function:
Specifies the access token that connects to Yammer.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Yammer Access Token
Function of this Screen:
Configures a new access token for Yammer.

Network Name
Function:
Specifies the name of your Yammer network.
Accepted Values:
Read only.

When you select the Yammer access token, the associated network name shows in the Network name field.

Default Value:
None

Select Users
Function:
Specifies the users from the user list.

Message
Function:
Specifies the content of the message.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
Yes

Add File URL
Function:
Specifies the location of the attachment file.
Accepted Values:
An absolute path and file name on the AgilePoint Server or SharePoint Server.

Only one attachment is not supported.

Default Value:
None
Accepts Process Data Variables:
Yes
Example:
  • c:\My Documents\sample1.doc
  • ${HomeDirectory}\sample2.doc
  • http://demo3:8000/DocumentLib1/sample3.doc

Store the Response Thread ID in Custom Attribute or Schema
Function:
Specifies the name of the process data variable that is used to store the response thread ID.
Accepted Values:
A process data variable.
Default Value:
None
Accepts Process Data Variables:
Yes

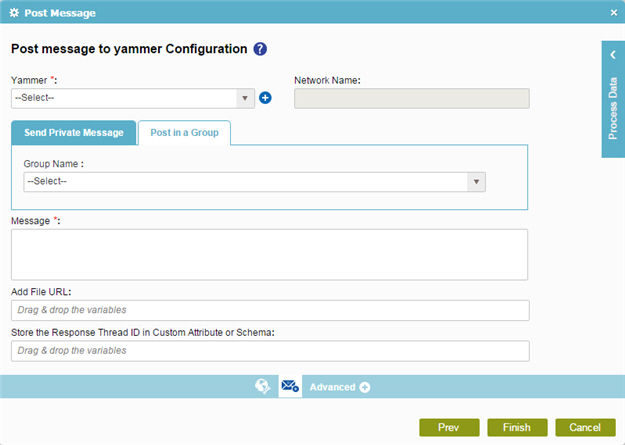

Post Message to Yammer Configuration > Post in a Group

Sets up a message to send to a specified group..



Fields

Field Name Definition

Yammer
Function:
Specifies the access token that connects to Yammer.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Yammer Access Token
Function of this Screen:
Configures a new access token for Yammer.

Network Name
Function:
Specifies the name of your Yammer network.
Accepted Values:
Read only.

When you select the Yammer access token, the associated network name shows in the Network name field.

Default Value:
None

Group Name
Function:
Specifies a group.
Accepted Values:
A valid group name from the list.
Default Value:
None
Accepts Process Data Variables:
Yes

Message
Function:
Specifies the content of the message.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
Yes

Add File URL
Function:
Specifies the location of the attachment file.
Accepted Values:
An absolute path and file name on the AgilePoint Server or SharePoint Server.

Only one attachment is not supported.

Default Value:
None
Accepts Process Data Variables:
Yes
Example:
  • c:\My Documents\sample1.doc
  • ${HomeDirectory}\sample2.doc
  • http://demo3:8000/DocumentLib1/sample3.doc

Store the Response Thread ID in Custom Attribute or Schema
Function:
Specifies the name of the process data variable that is used to store the response thread ID.
Accepted Values:
A process data variable.
Default Value:
None
Accepts Process Data Variables:
Yes
Parent topic: Yammer tab
