Process Activities / Google Drive tab
Parent topic: Google Drive tab

Delete Folder (Google Drive) activity

An activity that deletes a folder from Google Drive.



Configure the Delete Folder activity

To configure the Delete Folder activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the Google Drive tab.
      2. On the Google Drive tab, drag the Delete Folder activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Delete Folder .
  3. Complete the fields on the Delete Folder in Google Drive Configuration screen.

    For more information, refer to Delete a Folder from Google Drive.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

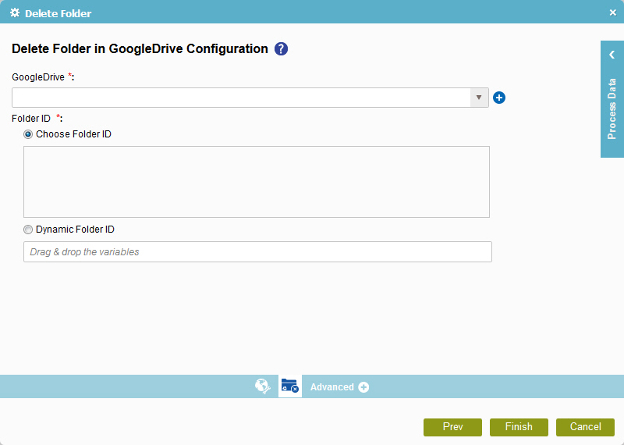

Delete Folder in Google Drive Configuration

Specifies a folder to delete from Google Drive.



Fields

Field Name Definition

Google Drive
Function:
Specifies the access token that connects to your Google Drive application.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Google Drive Access Token
Function of this Screen:
Configures a new access token for Google Drive.

Folder ID
Function:
Specifies the Google Drive folder. The activity uses the ID of the specified folder when the process runs.
Accepted Values:
  • Choose Folder ID - Specifies an absolute path for the folder.
  • Dynamic Folder ID - Specifies a process variable that stores the ID of folder.
Default Value:
None.
Accepts Process Data Variables:
Yes
