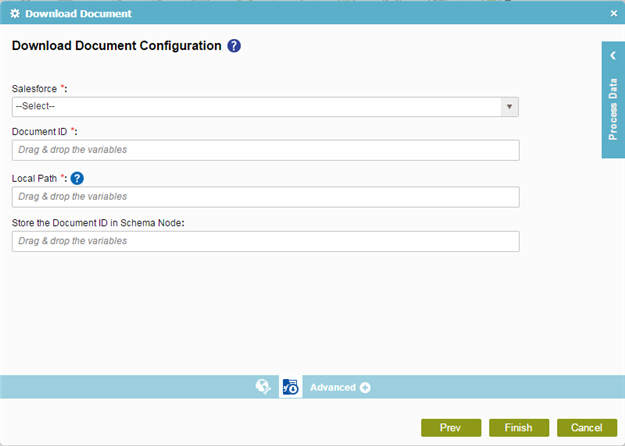

Download Document activity

Display Name

Function:

Specifies the activity name that shows in your process.

Accepted Values:

One line of text that can have spaces.

Default Value:

None

Accepts Process Data Variables:

No

Description

Function:

Specifies an optional description for your activity.

Accepted Values:

More than one line of text.

Default Value:

None

Accepts Process Data Variables:

No

Connection Timeout (Seconds)

Function:

Specifies the number of seconds permitted to complete an action before the connection stops.

Accepted Values:

An integer that represents a number of seconds.

Default Value:

600

Accepts Process Data Variables:

No

Salesforce

Function:

Specifies the access token that connects to your Salesforce application.

Accepted Values:

A list of access tokens configured for your environment.

Default Value:

None

Accepts Process Data Variables:

No

Add Token

Opens this Screen:

New Salesforce Access Token

Function of this Screen:

Configures a new access token for Salesforce.

Document ID

Function:

Specifies the ID of your document.

The document ID is supplied by Salesforce. The document ID is an identifier used to track a uploaded document.

Accepted Values:

A valid document ID.

Default Value:

None

Accepts Process Data Variables:

Yes

Local Path

Function:

Specifies the location of the file system folder on the local computer where the activity does an action, such as uploading or downloading files.

This setting gives the source location for the files to be uploaded and the target location for the files to be downloaded.

Accepted Values:

A file path relative to the AgilePoint Server application's root directory.

Default Value:

None

Accepts Process Data Variables:

Yes

Example:

• If AgilePoint Server is installed at:

  c:\Inetpub\wwwroot\AgilePointServer\

  And, the file once downloaded is to be located at:

  c:\Inetpub\wwwroot\AgilePointServer\files\MyFile.txt

  Then, the LocalPath property must be set to the following value:

  files

• If AgilePoint Server is installed at:

  c:\Inetpub\wwwroot\AgilePointServer\

  And, the file once downloaded is to be located at:

  c:\Inetpub\wwwroot\AgilePointServer\files\temp\MyFile.txt

  Then, the LocalPath property must be set to the following value:

  files\temp

Store the Document ID in Schema Node

Function:

Specifies the process data variable that contains the document ID.

Accepted Values:

A process data variable.

Default Value:

None

Accepts Process Data Variables:

Yes
