CAML Query activity

An activity that creates a SharePoint view with the available data fields using a CAML query. Use the CAML Query activity to create your CAML query, and your view.



Configure the CAML Query activity

To configure the CAML Query activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, go to the Activity Library, and open the SharePoint tab.
      2. On the SharePoint tab, drag the CAML Query activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click CAML Query Builder .
  3. Complete the fields on these screens.
    1. Configure CAML Query > List and View Fields tab.
    2. Configure CAML Query > Where Clause tab.
    3. Configure CAML Query > Grouping tab.
    4. Configure CAML Query > Code Snippet tab.
    5. Configure CAML Query > Query Options tab.
    6. Configure CAML Query > Schema tab.
    7. Configure CAML Query > Test Query tab.

    For more information, refer to Use a CAML Query to Get Information from SharePoint.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

Configure CAML Query > List and View Fields tab

Creates a view from the available fields, or columns, in a SharePoint list.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

List Name
Function:
Specifies the name of your SharePoint list .
Accepted Values:
The name of your SharePoint list.
Default Value:
None
Accepts Process Data Variables:
Yes

Show Hidden Fields
Function:
Specifies if you can use hidden columns in SharePoint for your CAML query.
Accepted Values:
  • Deselected - The SharePoint hidden columns are not available for your CAML query.
  • Selected - The SharePoint hidden columns are displayed in the Possible View Fields box, so you can use them for your CAML query.
Default Value:
Deselected

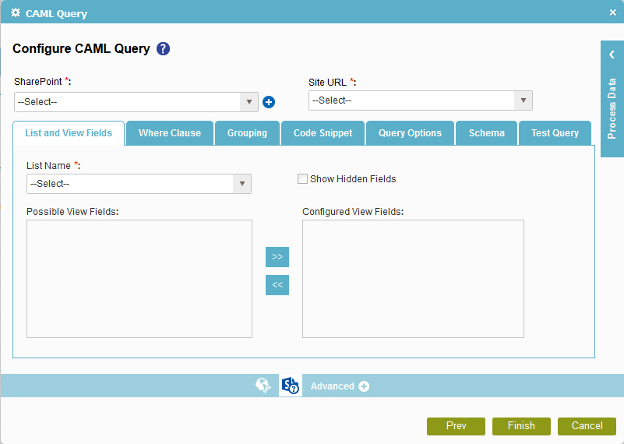

Possible View Fields
Function:
Shows all the columns of the specified SharePoint list.
Accepted Values:
A SharePoint column selected from the list.
Default Value:
None
Accepts Process Data Variables:
No

Left Arrow

Function:
Moves the selected fields from the Possible View Fields box to the Configured View Fields box.

Right Arrow

Function:
Moves the selected fields from the Configured View Fields box to the Possible View Fields box.

Configured View Fields
Function:
Specifies the SharePoint columns that are included in the CAML query.
Accepted Values:
A list of columns moved from the Possible View Fields box using the Left Arrow button.

To remove a column from the list, select the column, and then click the Right Arrow button.

Default Value:
None
Accepts Process Data Variables:
No

Configure CAML Query > Where Clause tab

Configures a Where clause to filter the results of a CAML query.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

Fields
Function:
Specifies the name of the SharePoint column.
Accepted Values:
Read only.
Default Value:
A list of names in the specified list.
Accepts Process Data Variables:
No

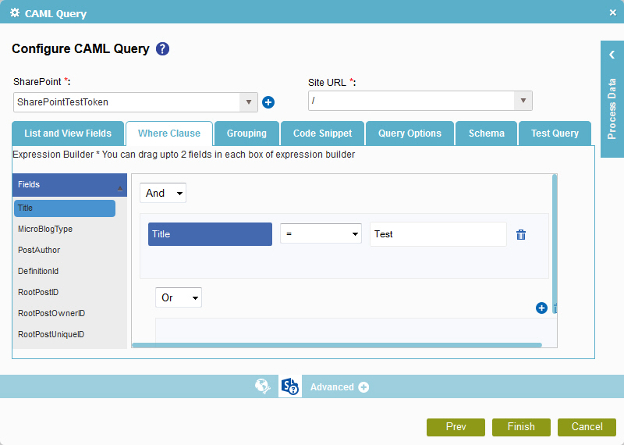

Add Condition

Function:
Creates a condition row.

Select Nest Type
Function:
Specifies the use of logical AND and OR operators to nest conditions for the WHERE clause.
  • And - Specifies the logical AND operator.
  • Or - Specifies the logical OR operator.

You must set the nest type first, before defining the condition for the where clause.

Column
Function:
Specifies the name of the SharePoint column.
Accepted Values:
A valid SharePoint column name.

Drag the name the column from the Fields field and drop it into the Column Name field to build a condition.

Default Value:
None
Accepts Process Data Variables:
No
Example:
Title

Comparer
Function:
Specifies the operator to use in your WHERE clause.
Accepted Values:
  • =
  • !=
  • Contains
  • Begins with
  • Is Not Null
  • Is Null
Default Value:
=

Value
Function:
Specifies the value for the column.
Accepted Values:
A valid column value.
Default Value:
None
Accepts Process Data Variables:
Yes

Delete Row

Function:
Deletes the row.

Configure CAML Query > Grouping tab

Groups SharePoint list data by a specified column name, either in ascending or descending order.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

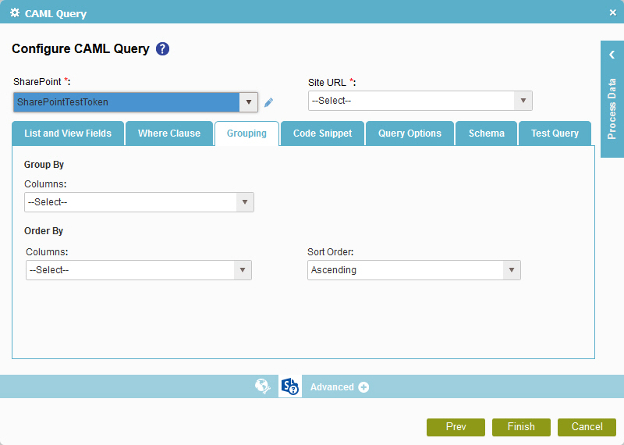

Group By - Columns
Function:
Specifies the name of the SharePoint column to group the SharePoint records to get the required result set.
Accepted Values:
The name of your SharePoint list column.
Default Value:
None
Accepts Process Data Variables:
No

Order By - Columns
Function:
Specifies the name of the SharePoint column that organizes the CAML query result set.
Accepted Values:
The name of your SharePoint list column.
Default Value:
None
Accepts Process Data Variables:
No

Order By - Sort Order
Function:
Specifies the sort order for the result set.
Accepted Values:
  • Ascending - The result set shows in an ascending order.
  • Descending - The result set shows in a descending order.
Default Value:
Ascending

Configure CAML Query > Code Snippet tab

Shows the code snippet that is generated from the WHERE clause.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

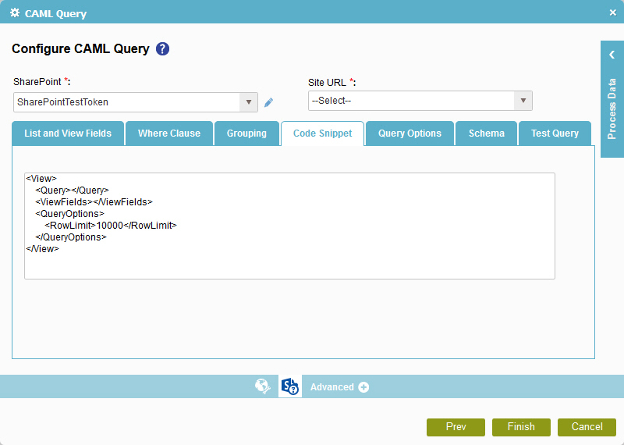

Code Snippet
Function:
Shows the code snippet the system creates for the CAML WHERE clause.
Accepted Values:
Read Only.
Default Value:
None

Configure CAML Query > Query Options tab

Specifies how and where CAML query operations are performed in the SharePoint list..



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

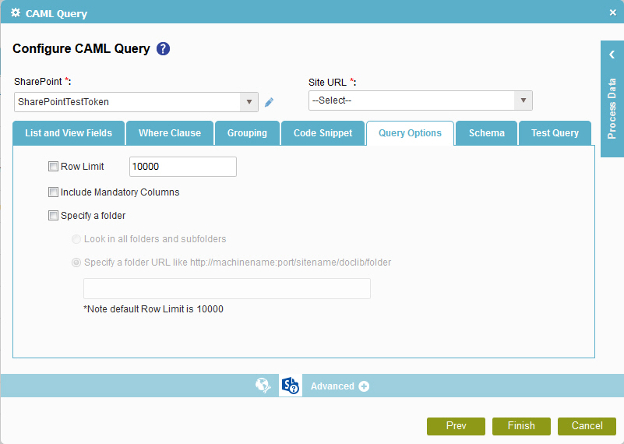

Row Limit
Function:
Specifies the maximum number of rows to get with the CAML query.
Accepted Values:
  • Deselected - Specifies to get 10,000 maximum from the CAML query.
  • Selected - Gets the specified number of records.
Default Value:
Deselected

Include Mandatory Columns
Function:
Specifies that mandatory columns are in the CAML query results.
Accepted Values:
  • Selected - The mandatory columns are in the CAML query results.
  • Deselected - The mandatory columns are not in the CAML query results.
Default Value:
Selected

Specify A Folder
Function:
Specifies the location of a folder in which to execute the CAML query.
Accepted Values:
  • Selected - The activity runs the CAML query at the folder location.
    • Look in All Folders and Subfolders - The CAML query is run in all the folders and their subfolders.
    • Specify a Folder URL like http://machinename:port/sitename/doclib/folder - The CAML query is run only in the specified folder.
  • Deselected - The activity runs the CAML query in the entire SharePoint database.
Default Value:
Selected
Accepts Process Data Variables:
No

Configure CAML Query > Schema tab

Connects the SharePoint columns in a CAML query response to the nodes in an AgilePoint schema.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

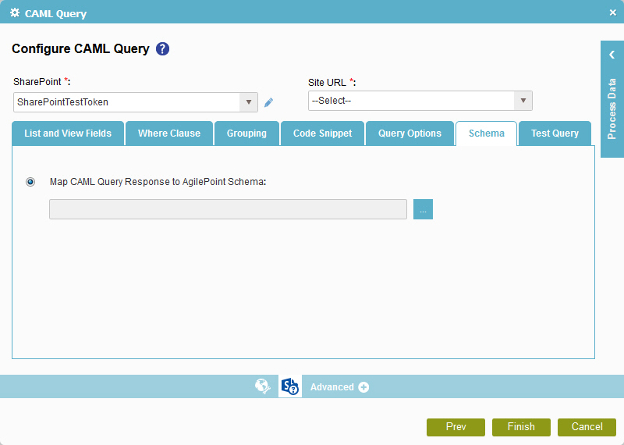

Map CAML Query Response to AgilePoint Schema
Function:
Connects the SharePoint columns returned from the CAML query to the AgilePoint schema.
Accepted Values:
Click the Ellipses button to open the Schema Mapper screen.

Use this screen to connect the response to the data model for your process.

Default Value:
None

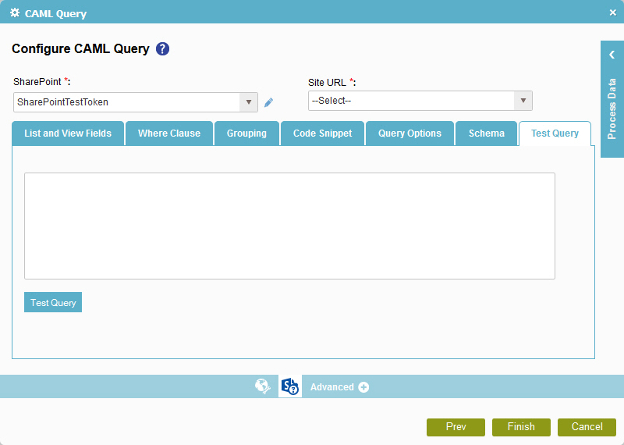

Configure CAML Query > Test Query tab

Makes sure the specified CAML query is correct.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Site URL
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

Test Query
Function:
Examines the CAML query, and shows a message if an error occurs.

If the CAML query runs successfully, the result shows in the box.
Parent topic: SharePoint tab

Quick Links:

Send Feedback

Quick Start

Process Activities

eForm Controls

AgilePoint NX Online Help

AgilePoint NX Technical Documentation

Support Portal

AgilePoint

AgilePoint NX

Documentation Updated: December 3, 2015

© 2015 AgilePoint, Inc. All rights reserved.
