Delete Folder (OneDrive) activity

An activity that deletes a folder in OneDrive.

Configure the Delete Folder activity

To configure the Delete Folder activity, do the procedure in this topic.

Good to Know

In most text fields, you can use process data variables as an alternative to literal data values.
You must specify the folder or folder ID to delete a folder.

How to Start

On the Organizer, do one of these:
- Open a process.
- Create a process.
Do one of these:
- Add an activity:
  1. In the Process Builder, in the Activity Library, open the OneDrive tab.
  2. On the OneDrive tab, drag the Delete Folder activity onto your process.
- Change an activity:
  1. In your process, double-click your activity.

Procedure

Complete the fields on the General Configuration screen.
For more information, refer to Configure General Options for a System Activity.
Click DeleteFolder .
Complete the fields on the Delete Folder in OneDrive Configuration screen.
For more information, refer to Delete a Folder from OneDrive.
(Optional) Click Advanced > E-mail Notification .
For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.

Fields

Field Name	Definition
Display Name	Function: Specifies the activity name that shows in your process. Accepted Values: One line of text that can have spaces. Default Value: None Accepts Process Data Variables: No
Description	Function: Specifies an optional description for your activity. Accepted Values: More than one line of text. Default Value: None Accepts Process Data Variables: No

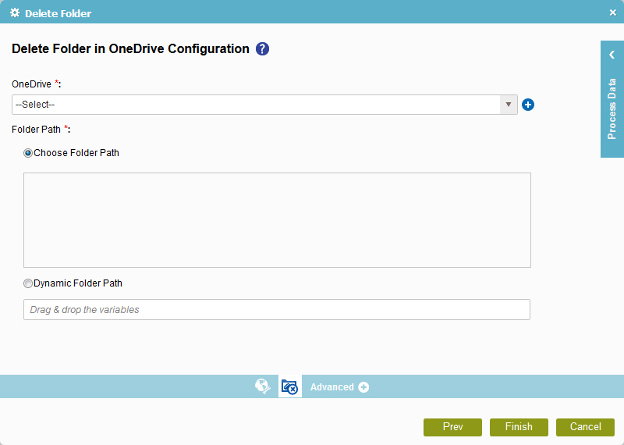

Delete Folder in OneDrive Configuration

Specifies a folder to delete from OneDrive.

Fields

Field Name	Definition
OneDrive	Function: Specifies the access token that connects to your OneDrive application. Accepted Values: A list of access tokens configured for your environment. Default Value: None Accepts Process Data Variables: No
Add Token	Opens this Screen: New OneDrive Access Token Function of this Screen: Configures a new access token for Microsoft OneDrive.
Folder Path	Function: Specifies the path of the folder. Accepted Values: Choose Folder Path - Specifies an absolute path for the folder. Dynamic Folder Path - Specifies a process variable that stores the path of folder. Default Value: Choose Folder Path Example: c:\My Documents\sample1.doc ${HomeDirectory}\sample2.doc http://demo3:8000/DocumentLib1/sample3.doc

Related Topics

Delete a Folder from OneDrive
