Delete File (Dropbox) activity

An activity that deletes a file from Dropbox.



Configure the Delete File activity

To configure the Delete File activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the Dropbox tab.
      2. On the Dropbox tab, drag the Delete File activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Delete File .
  3. Configure the Delete File activity options on the Delete File Configuration screen.

    For more information, refer to Delete a File in Dropbox.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

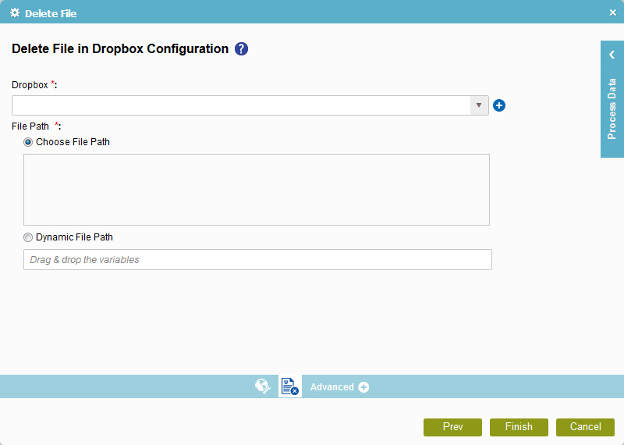

Delete File Configuration

Specifies the Dropbox file to delete.



Fields

Field Name Definition

Dropbox
Function:
Specifies the access token that connects to your Dropbox application.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Dropbox Access Token
Function of this Screen:
Configures a new access token for Dropbox.

File Path
Function:
Specifies the Dropbox file. The activity uses the location of the specified file when the process runs.
Accepted Values:
  • Choose File Path - Specifies an absolute path for the file.
  • Dynamic File Path - Specifies a process variable that stores the path of file.
Default Value:
Choose File Path
Accepts Process Data Variables:
Yes
