How Do I Find the License Key for an Installed AgilePoint Component?

Objective

To provide instructions for finding the License Key that is associated with an installed AgilePoint component.

Summary

The License Key for a particular installed AgilePoint component (Envision, Server, Developer) can be found by either using the utility attached below or by navigating the registry.

Prerequisites

• AgilePoint BPMS or NX in an on-premises environment.

Resolution

Solution 1:

The easiest way to find the license key associated with a particular installed AgilePoint component is to download and run the ShowlicenseKey.exe utility. This utility can be downloaded as an attachment below.

Solution 2:

An alternative solution to finding the license key associated with a particular installed AgilePoint component is via the registry as is detailed below.

1. Click Start > Run.
2. In the Open field, type regedit.
3. Click OK.
4. Navigate to the following location:

   My Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\

5. Right click on the UserData folder and click Find.
6. Type www.agilepoint.com and click Find Next.

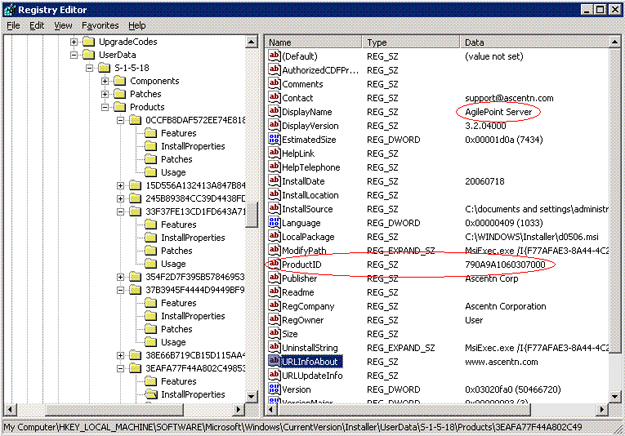

7. Press the F3 key until you see "AgilePoint Server" in the Display Name field. The Product ID field shows the License Key information as shown below:

8. Continue pressing the F3 key until you find the AgilePoint Developer and AgilePoint Envision components, each of which displays a Product ID field. This is the License Key used for the installation.

Downloads

ShowLicenseKey.zip.
