How to Start
- In the Manage Center, click
App Builder
> Global Access Tokens.

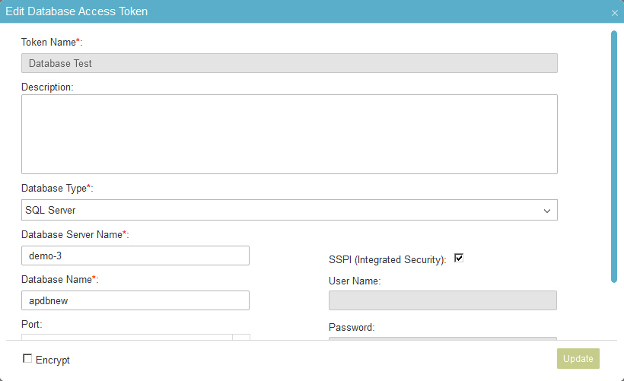

- On the Global Access Tokens screen, select your key.
- Click Edit Token
.
Fields
| Field Name |
Definition |
Token Name
|
- Function:
- Specifies the unique name for your connection to the Database.
- Accepted Values:
- A string that can include letters, numbers, and spaces.
- Default Value:
- None
|
Description
|
- Function:
- A description for your access token.
- Accepted Values:
- More than one line of text.
- Default Value:
- None
|
Database Type
|
- Function:
- Specifies the database technology
to store your data.
- Accepted Values:
-
- Default Value:
- None
|
Database Server Name
|
- Function:
- Specifies the database server name, where your database is installed.
- Accepted Values:
- A valid database server name.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Database Name
|
- Function:
- Specifies the name of your database.
- Accepted Values:
- The name of your database.
- Default Value:
- None
|
Port
|
- Function:
- Specifies the port number to connect to the database server.
- Accepted Values:
- A valid port number.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Timeout
|
- Function:
- Specifies the maximum time to connect to the database.
- Accepted Values:
- An integer.
- Default Value:
- 600
|
SSPI (Integrated Security)
|
- Function:
- Determines whether the SSPI integrated security is to be activated.
- Accepted Values:
- Deselected - Specifies not to activate the SSPI integrated security.
- Selected - Specifies to activate the SSPI integrated security.
- Default Value:
- Deselected
|
User Name
|
- Function:
- Specifies the user name for database authentication.
- Accepted Values:
- A valid user name.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Password
|
- Function:
- The password for the authentication account.
- Accepted Values:
- A valid password.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Test Connection
|
- Function:
- Makes sure the specified database account is correct.
|
Encrypt
|
- Function:
- Holds the access token in the AgilePoint database as encrypted data.
- Accepted Values:
- Deselected - The access token is in plain text in the database.
- Selected - The access token is encrypted in the database.
- Default Value:
- Deselected
|
